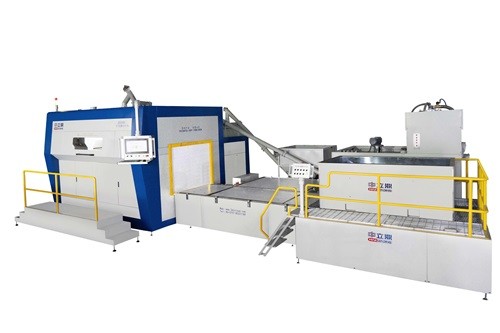

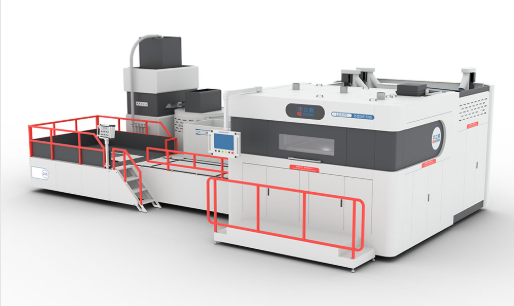

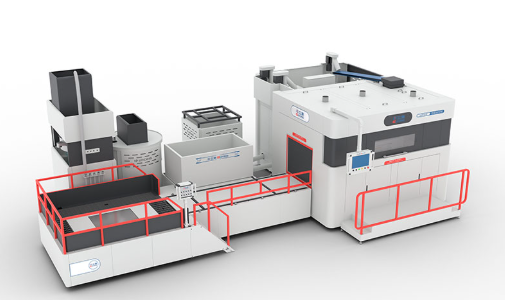

L251510 Plus Sand 3D Printer

Technical Parametes

Forming Size（mm)：2500*1500*1000

Printing Speed (S/Layer)：13

Printing Efficiency（L/H)：312-519

Full Box Printing Time(H)：7.2-12

Printing Resolution (dpi)：300*400 or  400*400 or 400*600 or 400*800(adjustable）

Sand Mold Accuracy（mm）：±0.3

Layer Height(mm)：0.1-0.6（adjustable）

Print Media： Natural and synthetic sands

Binder ：Nitrogen-free Furan、Inorganic Binder

Advantages

1,Faster printing! Over 50%increase in printing efficiency year-over year.

2, Lower cost of use and maintenance! Printing head consumption is less , laying powder excess material can be collected automatically  in all directions without wasting catalyzer; printing host is equipped with its own air conditioner.

3,Longer print head life! Self-developed  special binder , less corrosive to the print head.

4, Better  printing quality! Patented  anti-fracture  3D printing method.

5, Higher printing accuracy! Using linear motor.

6, More stable  operation!

7, More intelligent ! Modularity+ Intelligent production line+ Cell phone App+ Remote maintenance

8, More easy opertaion! Formulation of print process parameters.
